Lister Diesel Engine Head

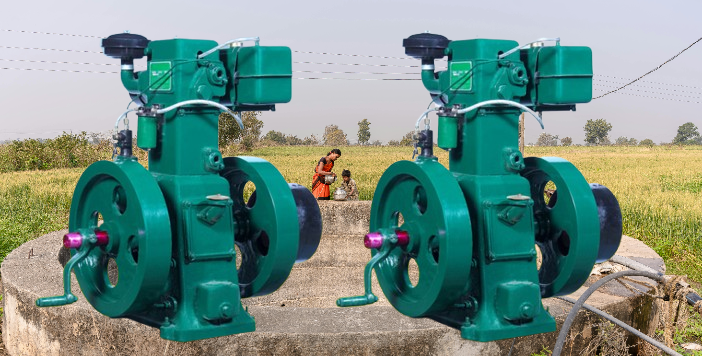

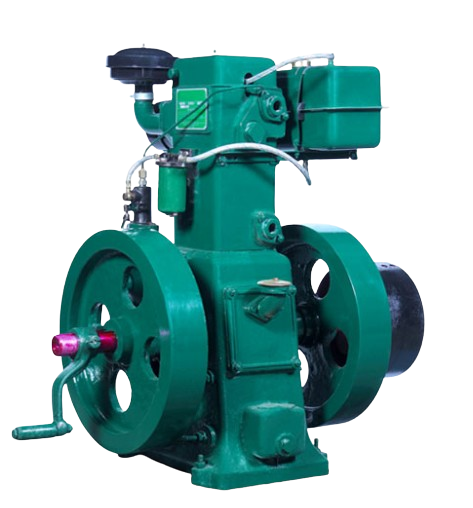

As a leading manufacturer, we offer a comprehensive range of Lister type diesel engines with varying horsepower options ranging from 6 to 20 HP, and RPM (Revolutions Per Minute) ranging from 650 to 1000. Our engines are available in single or double-cylinder configurations, providing flexibility to meet diverse power requirements. These engines feature water cooling systems, ensuring effective temperature regulation during operation. Fuel injection options include both Direct Injection and Indirect Injection methods, allowing customers to choose the most suitable option for their specific needs.
| Particulars | 6/1 | 8/1 | 10/1 | 12/1 | 14/1 | 16/1 | 12/2 | 16/2 | 20/2 |
|---|---|---|---|---|---|---|---|---|---|
| Rated Horse Power B.H.P. | 6 | 8 | 10 | 12 | 14 | 16 | 12 | 16 | 20 |
| Rated Speed (RPM) | 650 | 850 | 1000 | 1000 | 850 | 850 | 650 | 850 | 1000 |
| No. of Cylinder | One | One | One | One | One | One | Two | Two | Two |
| Cyl. Bore & Stroke (Inch) | 4½ x 5½ | 4½ x 5½ | 4¾ x 5½ | 5 x 5½ | 5½ x 6 | 6 x 7 | 4½ x 5½ | 4½ x 5½ | 4¾ x 5½ |
| M x M | 114.3 x 139.7 | 114.3 x 139.7 | 120 x 139.7 | 127 x 139.7 | 139.7 x 152.4 | 152.4 x 117.8 | 114.3 x 139.7 | 114.3 x 139.7 | 120 x 139.7 |
